Science tank series

• 28 Years of Welding Expertise
• High-Pressure One-Time Foaming
• Ultra-Low Thermal Conductivity
• Compatible with Multiple Heat Sources

household electric stainless steel storage tank domestic water tank

Standard model:

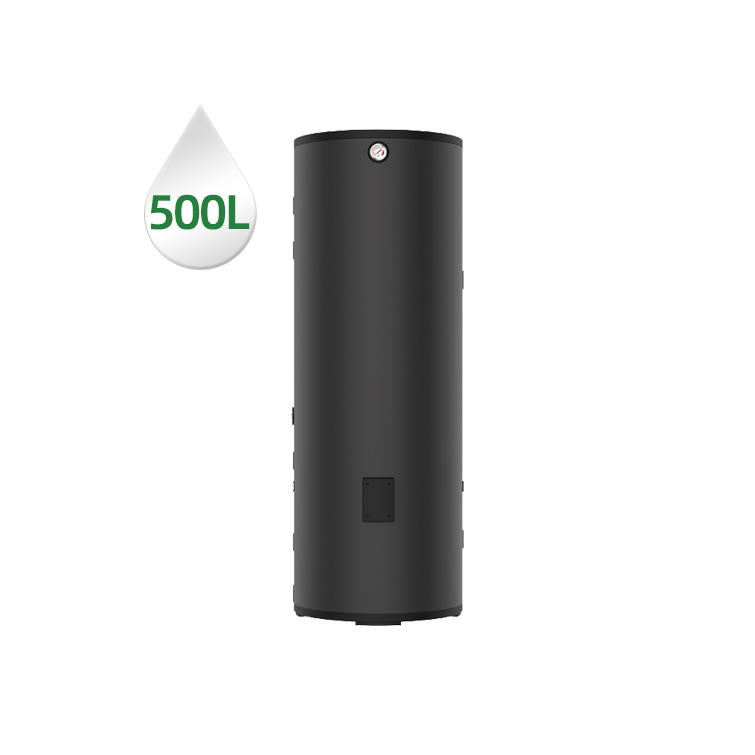

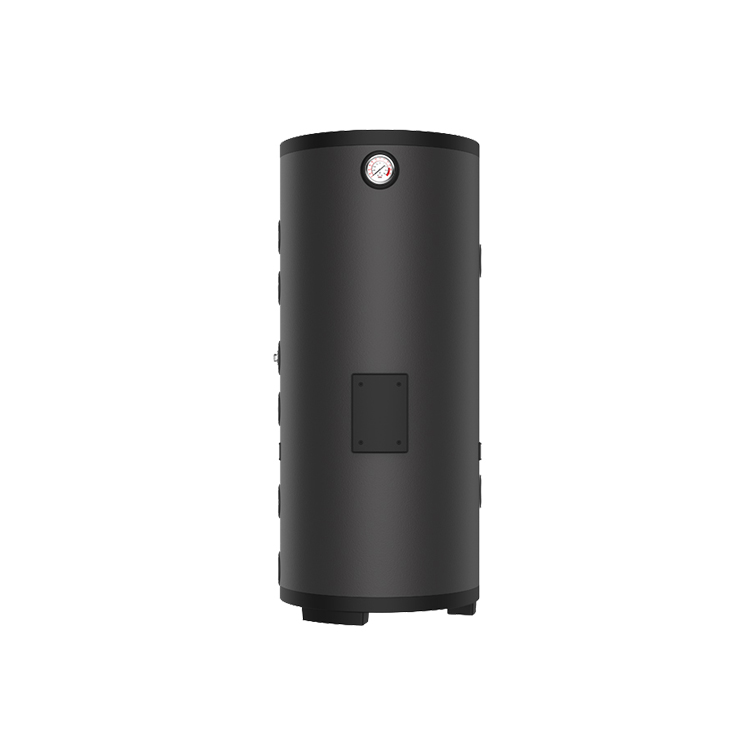

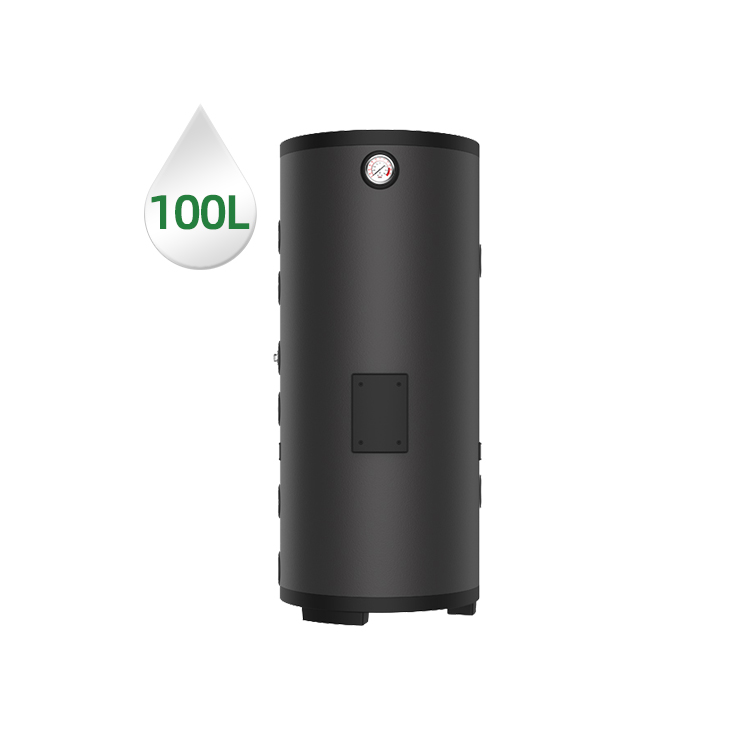

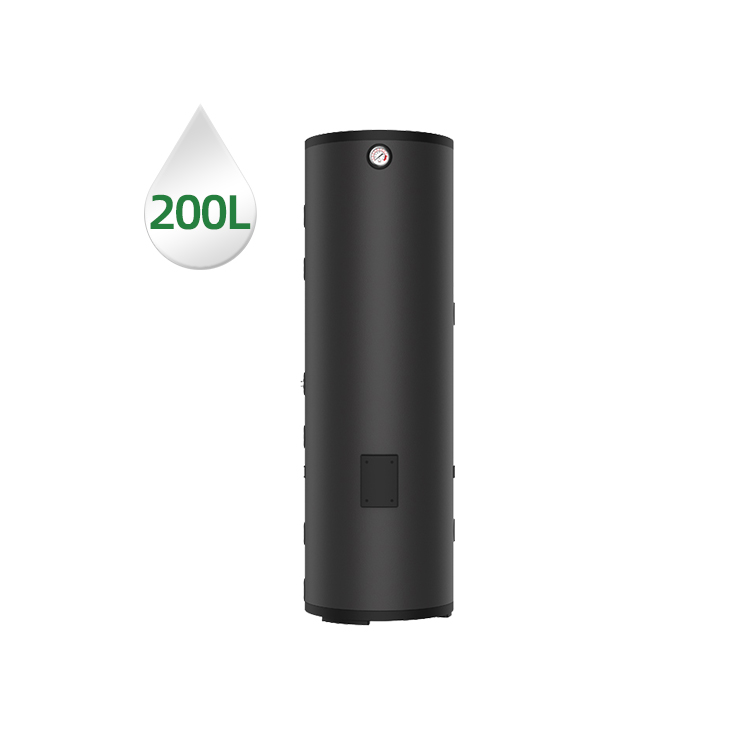

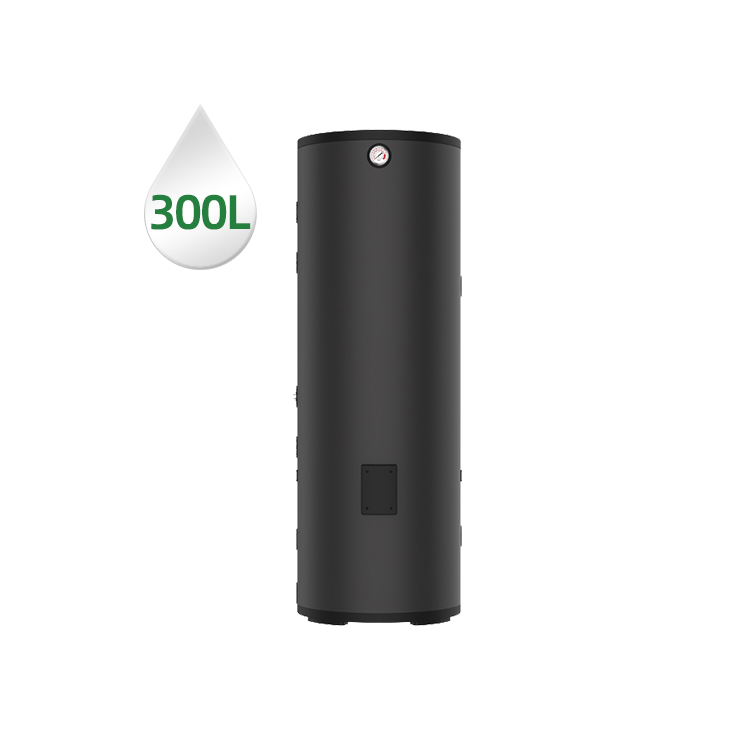

100L，200L，300L，500L

Full Customizations for 50-500L

ꁆ ꁇ

넳 넲

Product Details

technical parameters

Model	HWT100	HWT200	HWT300	HWT500
voltage	230V	230V	230V	230V
Volume	100L	200L	300L	500L
working pressure	0.66MPa(6.6bar)	0.66MPa(6.6bar)	0.66MPa(6.6bar)	0.66MPa(6.6bar)
Max. working water temperature	90 ℃	90 ℃	90 ℃	90 ℃
Water tank material	SUS304/SUS316L
Energy efficiency class	B	B	B	C
Heat losses/hr	46.3W	55.4W	64.6W	87.9W
Coil material	SUS304/SUS316L/SUS2205
Coil heat exchange surface	1.2 ㎡	1.8 ㎡	3.2 ㎡	4.0 ㎡
Insulation thickness	50mm	50mm	50mm	50mm
Dimension	φ470*1141	φ520*1645	φ600*1750	φ700*1990
Warranty	5years
