Buffer Tank Series

• 28 Years of Welding Expertise
• High-Pressure One-Time Foaming
• Ultra-Low Thermal Conductivity
• Compatible with Multiple Heat Sources

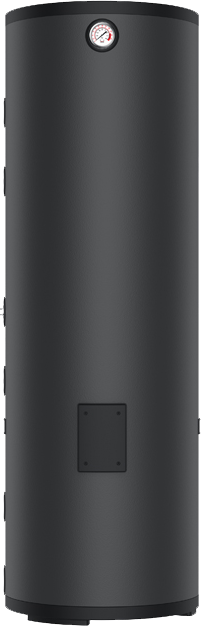

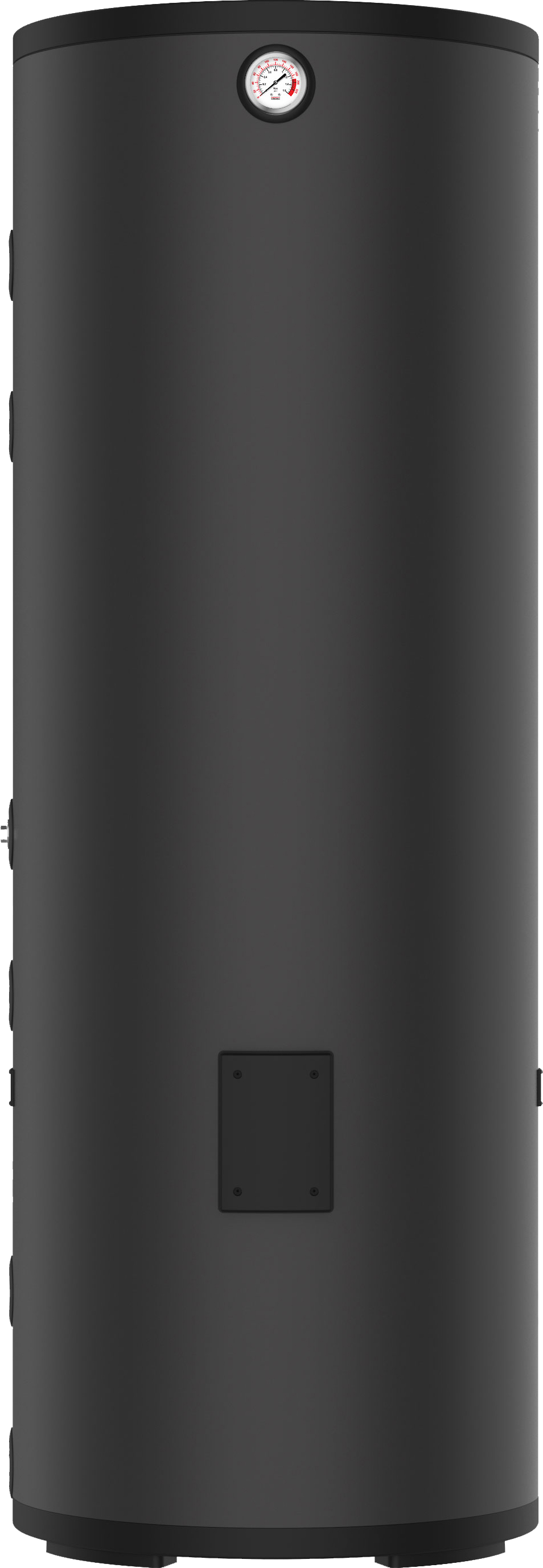

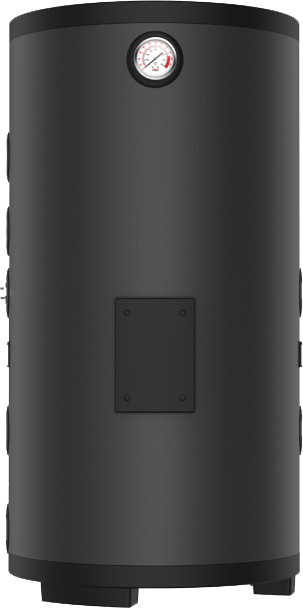

High efficiency hot water boiler buffer tank

Standard model:

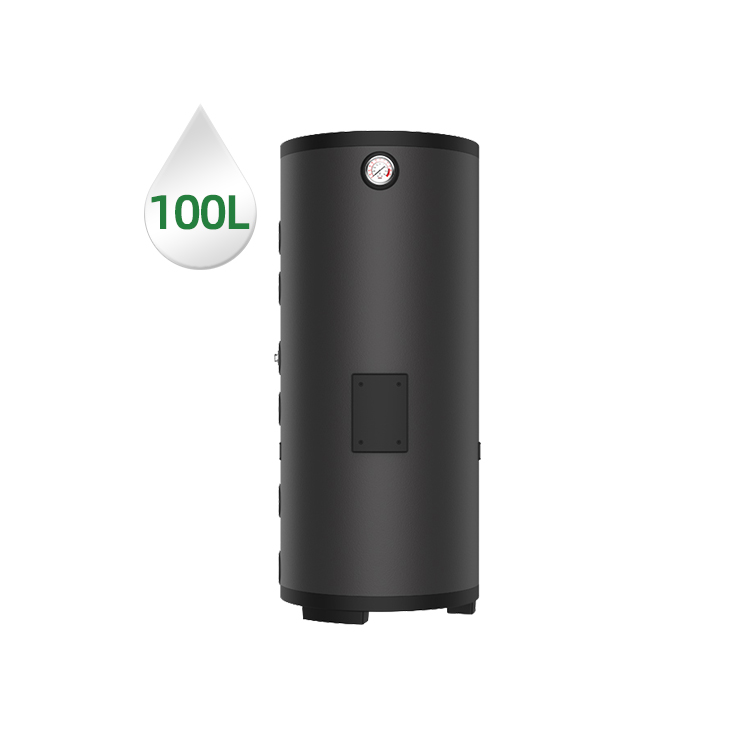

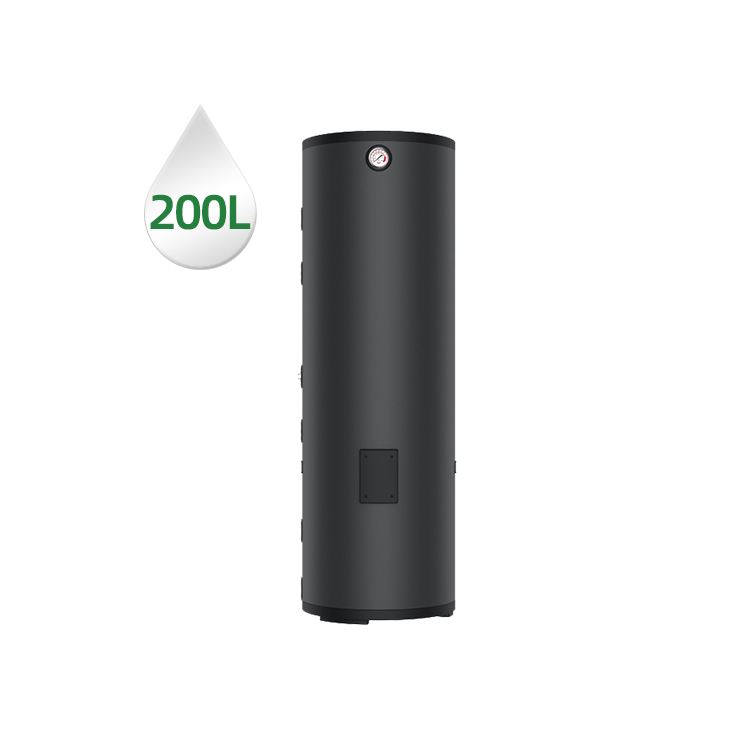

50L，80L，100L，200L，300L
Full Customizations for 50-500L

ꁆ ꁇ

넳 넲

Product Details

technical parameters

Model	BWT050	BWT080	BWT100	BWT200	BWT300
voltage	230V	230V	230V	230V	230V
Volume	50L	80L	100L	200L	300L
working pressure	0.66MPa(6.6bar)	0.66MPa(6.6bar)	0.66MPa(6.6bar)	0.66MPa(6.6bar)	0.66MPa(6.6bar)
Water tank material	SUS304/SUS316L/SUS2205
Max. working water temperature	90 ℃	90 ℃	90 ℃	90 ℃	90 ℃
Energy efficiency class	B	B	B	B	B
Heat losses/hr	38.8W	42.1W	46.3W	57.9W	67.5W
Insulation thickness	50mm	50mm	50mm	50mm	50mm
Coil Material	SUS304/SUS316L
Dimension	φ470*682	φ470*878	φ470*1091	φ600*1670	φ600*1703
Warranty	5years
